CNC SOLUTIONS FOR WOODWORKING MACHINES



OUR CNC CONTROLS

Two CNC Versions, endless possibilities

_DSC1304.psd_Reck S 500 Rack con espansi

S500 RACK CNC

The S500 Rack CNC is our high-performance CNC. It is always the right choice for highly dynamic machines or for 3D/5 axis machines.

Features:

Up to 156 Axes

Ethercat

CAN/Open

Analog

Mechatrolink I&II (via extension Card)

SERCOS (via extension Card)

​ETS Real time Operating System

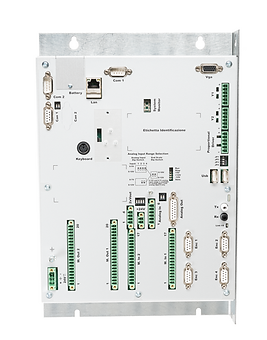

_DSC1219.psd_Front view.png

S500N RACK CNC

The S500N Rack CNC is an economic, but yet powerful CNC for all applications.

Features:

Up to 12 Axes

Ethercat

CAN/Open

Analog

ETS Real time Operating System



OUR INDUSTRIAL PCS

If you want to have a Windows IPC along with one of our CNCs, choose one of our IPCs

S675 W

The S675 W is our top-of-the-line IPC. It interfaces with our CNC via Ethernet and comes with a 21'' multi-touch screen for the best operating experience you'll ever have.

_DSC1335 T.psd-2.png


OUR COMPACT CNC CONTROLS

Screen + S 500N Rack CNC mounted on the back

S640 Cutting.png
S630 Cutting.png

S630 CNC

The S630 is our most economical compact CNC and comes with an 10,1'' single-touch screen. It's easy to operate and is usually uesd for entry-level machines.

Features:

10,1'' Touch Screen

Up to 4 Axes

4 analog axes Outputs* (on board)

4 analog Encoder Inputs* (on board)

4 analog Inputs* (on board)

2 analog Outputs* (on board)

32 digital Inputs* (on board)

32 digital Outputs* (on board)

ETS Real time Operating System

Ethercat/CANopen or Analog Axes Interface

*expendable via additional I/O boards

S640 CNC

The S640 is one of our two compact CNCs and comes with an 15,6'' single-touch screen. It's easy to operate and can be used on standard machines.

Features:

15,6'' Touch Screen

Up to 6 Axes

4 analog axes Outputs* (on board)

4 analog Encoder Inputs* (on board)

4 analog Inputs* (on board)

2 analog Outputs* (on board)

32 digital Inputs* (on board)

32 digital Outputs* (on board)

ETS Real time Operating System

Ethercat/CANopen or Analog Axes Interface

*expendable via additional I/O boards



ROUTING AND MILLING FEATURES

ULTRA HIGH BLOCK EXECUTION SPEED

RETURN TO BLOCK FUNCTION

PROCESS RESUME FUNCTION

PLANE MAPPING

MULTI TOOLS

REAL-TIME GRAPHICS

LATHE FUNCTIONALITY

MULTI HEAD MANAGEMENT

MULTI PROCESS MANAGEMENT (SAWS, DRILLS, GRINDERS)

FULL 3D/5-AXIS MACHINING



SOFTWARE SUITE FOR WOODWORKING

A Ready-Made solution for routers and milling machines

Router HMI.jpg

WOODWORKING HMI

Operating a router can be so easy



YOUR ADVANTAGES

READY-MADE PACKAGE

All CNCs come as ready-made packages which you can use right off. However customization is also no big deal. So you can go from our standard and bring in your own know-how whenever you want.

FAST AND SIMPLE INTEGRATION

Integration does not necessarily be a though job. Our CNCs are easy to integrate into your machine by using our software tools. However if you have not worked with ESA before some learning might be necessary.

USER-FRIENDLY

When designing our HMIs, we cared about the needs of the operator. When operating the machine it should be easy and efficient to click trough the menu. That's why our HMIs are considered to be easy to operate.

OUTSTANDING PERFORMANCE

Do to the architecture of our software and the deep application knowledge at ESA our CNCs get the maximum out of your machines. This means more parts at the same time.

100% SATISFACTION POLICY

Our 100% satifaction guarantee is unique troughout our industry. This shows that we are convinced of our products. So there is no risk for you to put our CNCs on your machine and see how the machine performs.

COMPETITIVE PRICING

As machines are getting more and more compareable to each other, the pressure on pricing is high. Therefore we designed our CNCs in a way that they can compete on the market and make our customers more competitive as well.



SERVO DRIVES, MOTORS AND I/O MODULES

Beside our CNC Controls we offer our own Drives, Motors and I/O Modules as well

_DSC1297.psd_Lateral view.png

EBS SERVO DRIVES

From 3 Amps to 42 Amps
Ethercat or CANopen Interface
5 digital Inputs
3 digital Outputs
Automatic Brake

ED3-Servo Motors.jpg

ED-SERIES SERVO MOTORS

Brushless Servo Motors with integrated Drives
From 0,65 to 5,4Nm
Ethercat or CANopen Interface
Incremental or Absolut Encoders


E-SERIES SERVO MOTORS

Brushless Servo Motors
From 0,7 to 500Nm
Incremental or Absolut Encoders

Remote IO.png

ESA MODULAR OR STAND ALONE REMOTE IO/ MODULES

We offer a wide range of I/O modules to expand the integrated I/O of our CNCs. Our I/O Modules are available with Ethercat, CANopen or optical fibre interface.



REFERENCES

Some of our Valued Customers


PADE
(ITALY)

Routers

Logo SCM.png

SCM GROUP
(ITALY)

Routers, Machining Centers

Logo Greda.jpg

GREDA
(ITALY)

Routers, Machining Centers


COSEMC
(ITALY)

Routers, Machining Centers



ESA CNC ON A SCM 5-AXIS MACHINE
